Yaesu FT-8x7

Configuration tested with Yaesu 817

Radio - Settings
connect ACC and USB-Input on FT8--Box with appropreate cable CT-62.

Menu-Settings:
03 9600 Mic      100
14 CAT  RATE  4800
25 DIG   MIC      85
26 DIG   MODE USER-U
39 PKT  MIC      75
40 PKT  RATE  9600

Important:
26 DIG  MODE USER-U
see also YouTube OH8STN

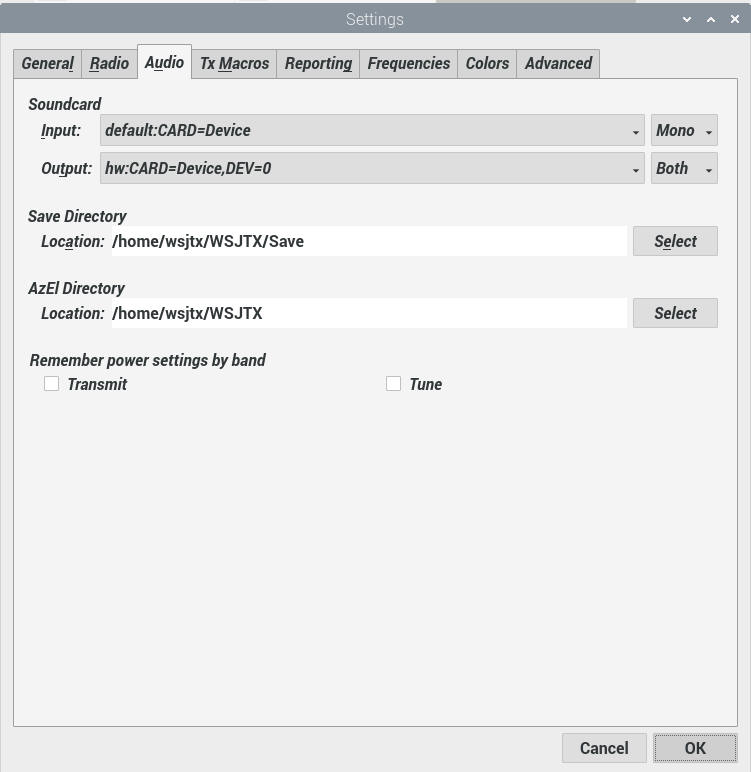

Audio - Settings

Connection with Data Cable CT-39a
Cable CT-39a                         SoundCard
GNC, DATA IN                        Out
GNC, DATA OUT 9600 bps  In

II had an old PS-mouse:
It has the same connector: I cuted the cable
and used this
with two 3.5mm audio mono connectors.

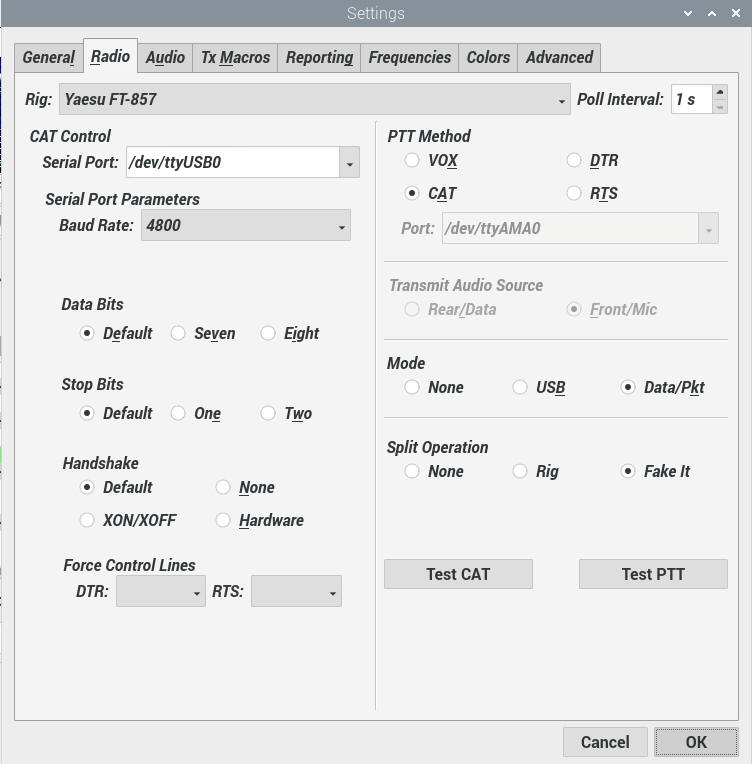

Rig Setting
